Inheritance diagram for LineStyle:

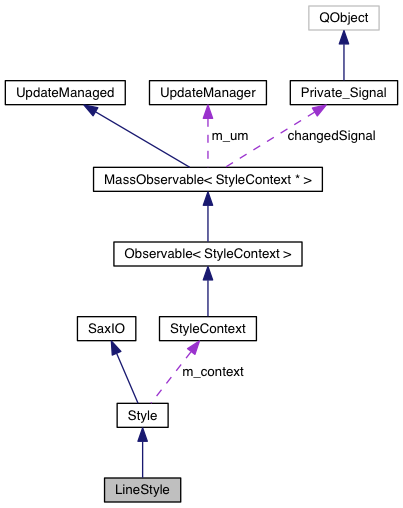

Collaboration diagram for LineStyle:

Public Member Functions
	LineStyle (qreal width, const QString &color, qreal shade=100)

	LineStyle (const LineStyle &other)

LineStyle &	operator= (const LineStyle &other)

virtual void	saxx (SaxHandler &handler, const Xml_string &elemtag) const

virtual void	saxx (SaxHandler &handler) const

void	getNamedResources (ResourceCollection &lists) const

void	replaceNamedResources (ResourceCollection &newNames)

QString	displayName () const

void	update (const StyleContext *b)

bool	equiv (const Style &other) const

void	applyLineStyle (const LineStyle &other)

void	eraseLineStyle (const LineStyle &other)

void	setStyle (const LineStyle &other)

void	erase ()

QString	asString () const

void	appendSubline (const LineStyle &subline)

Public Member Functions inherited from Style
	Style (StyleContext *b, QString n)

Style &	operator= (const Style &o)

	Style (const Style &o)

void	saxxAttributes (Xml_attr &attr) const

void	setDefaultStyle (bool ids)

bool	isDefaultStyle () const

QString	name () const

void	setName (const QString &n)

bool	hasName () const

QString	parent () const

void	setParent (const QString &p)

bool	hasParent () const

const Style *	parentStyle () const

virtual void	setContext (const StyleContext *context)

const StyleContext *	context () const

void	validate () const

QString	shortcut () const

void	setShortcut (const QString &shortcut)

virtual bool	operator== (const Style &other) const

virtual bool	operator!= (const Style &other) const

void	applyStyle (const Style &other)

void	eraseStyle (const Style &other)

Static Public Member Functions
static void	desaxeRules (const Xml_string &prefixPattern, desaxe::Digester &ruleset, Xml_string elemtag=saxxDefaultElem)

Static Public Member Functions inherited from Style
template<class SUBSTYLE >
static void	desaxeRules (const Xml_string &prefixPattern, desaxe::Digester &ruleset, Xml_string elemtag)

Static Public Member Functions inherited from SaxIO
static void	desaxeRules (const Xml_string &, desaxe::Digester &, const Xml_string=saxxDefaultElem)

Static Public Attributes
static const Xml_string	saxxDefaultElem

Static Public Attributes inherited from Style
static const QString	INHERIT_PARENT = "\n"

Static Public Attributes inherited from SaxIO
static const Xml_string	saxxDefaultElem

Additional Inherited Members
Protected Attributes inherited from Style
bool	m_isDefaultStyle

QString	m_name

const StyleContext *	m_context

int	m_contextversion

QString	m_parent

QString	m_shortcut

Member Function Documentation

bool LineStyle::equiv ( const Style & other ) const

virtual

returns true if both Styles are of the same type, inherit the same attributes, have the same parent, and agree on all attributes which are not inherited. The StyleContext, the name and any inherited attrinutes may be different.

Implements Style.

void LineStyle::erase ( )

inlinevirtual

resets all attributes to their defaults and makes them inherited. name and parent are not affected.

Implements Style.

void LineStyle::saxx	(	SaxHandler &	,
		const Xml_string &
	)		const

virtual

Writes an XML representation of this object

Implements SaxIO.

virtual void LineStyle::saxx ( SaxHandler & ) const

inlinevirtual

Writes an XML representation of this object using the default element tag, see below

Implements SaxIO.

void LineStyle::update ( const StyleContext * b )

virtual

sets a new StyleContext if b is not NULL and then uses the StyleContext to set all inherited attributes to their valid value.

Reimplemented from Style.

The documentation for this class was generated from the following files:

/Users/ale/src/Scribus/scribus/styles/linestyle.h
/Users/ale/src/Scribus/scribus/styles/linestyle.cpp
